DALI PHANTOM CI AMP-4750 DSP Custom Installation Amplifier

DALI PHANTOM CI AMP-4750 DSP Custom Installation Amplifier

Name: DALI PHANTOM CI AMP-4750 DSP Custom Installation Amplifier
Brand: DALI
SKU: 275070
Price: 7599.0 AUD
Availability: InStock

DALISKU: 275070

Price:

$7,599

*Check with our team or your local store for availability.

We guarantee that all of our stock is 100% genuine,
Australian sourced stock, with full local warranty.

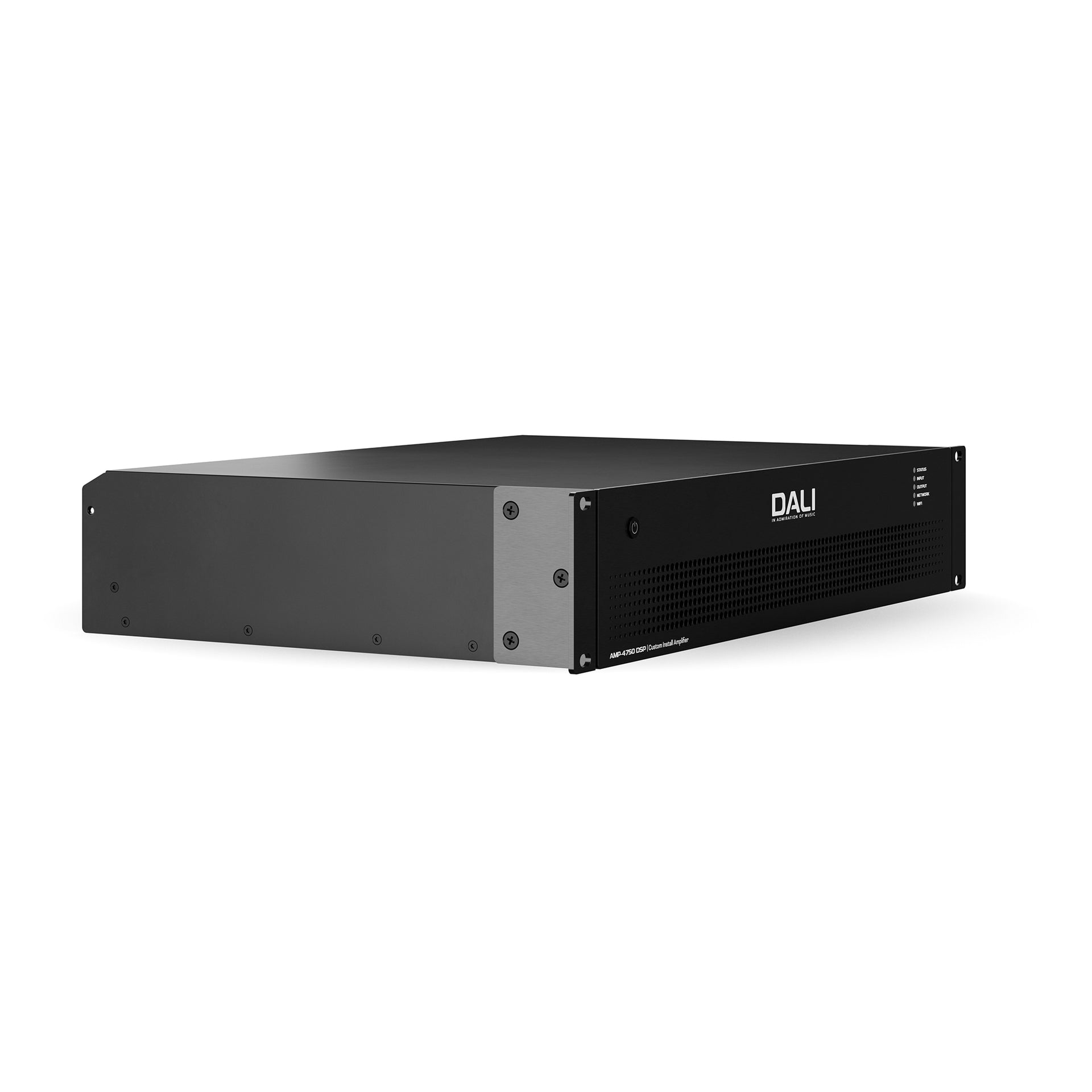

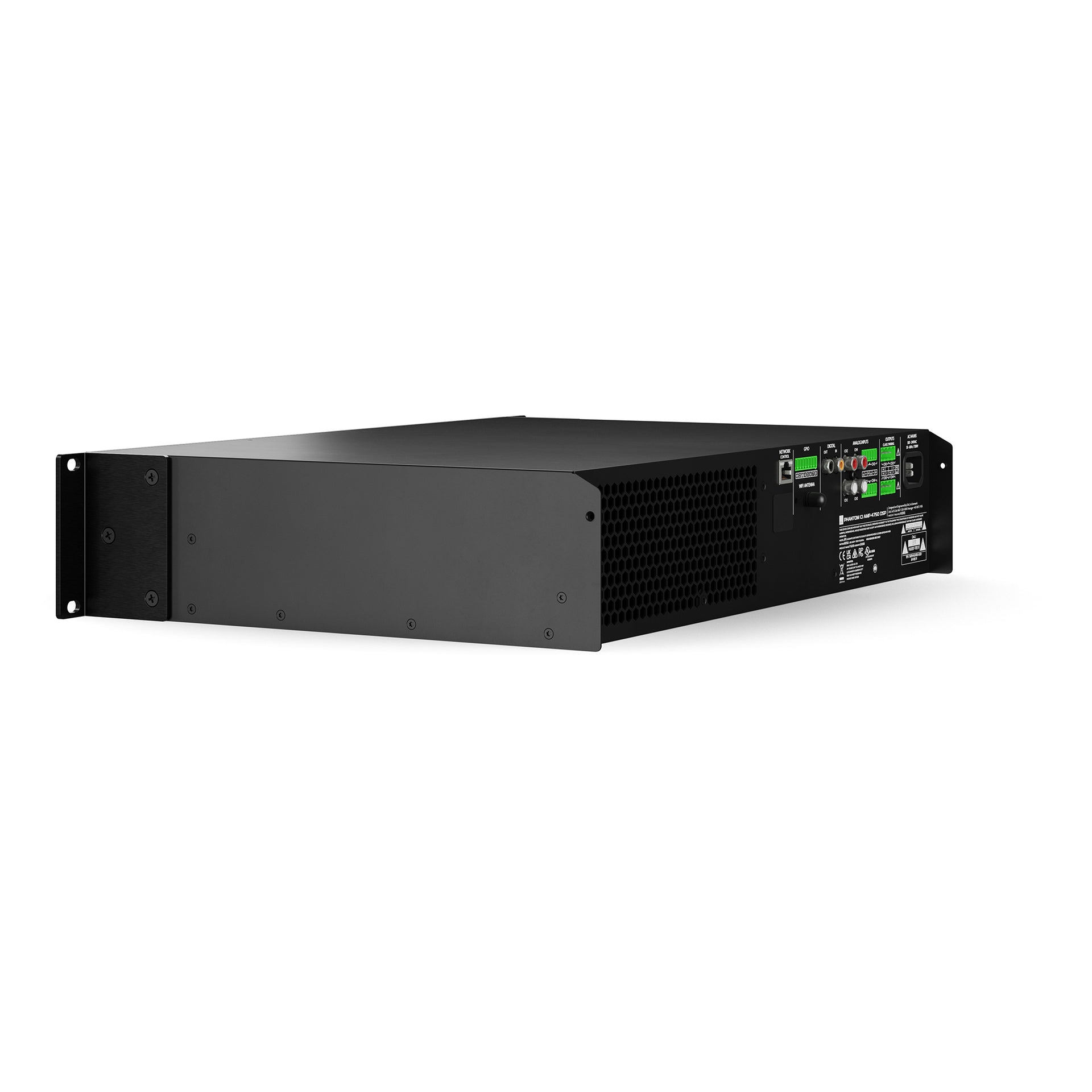

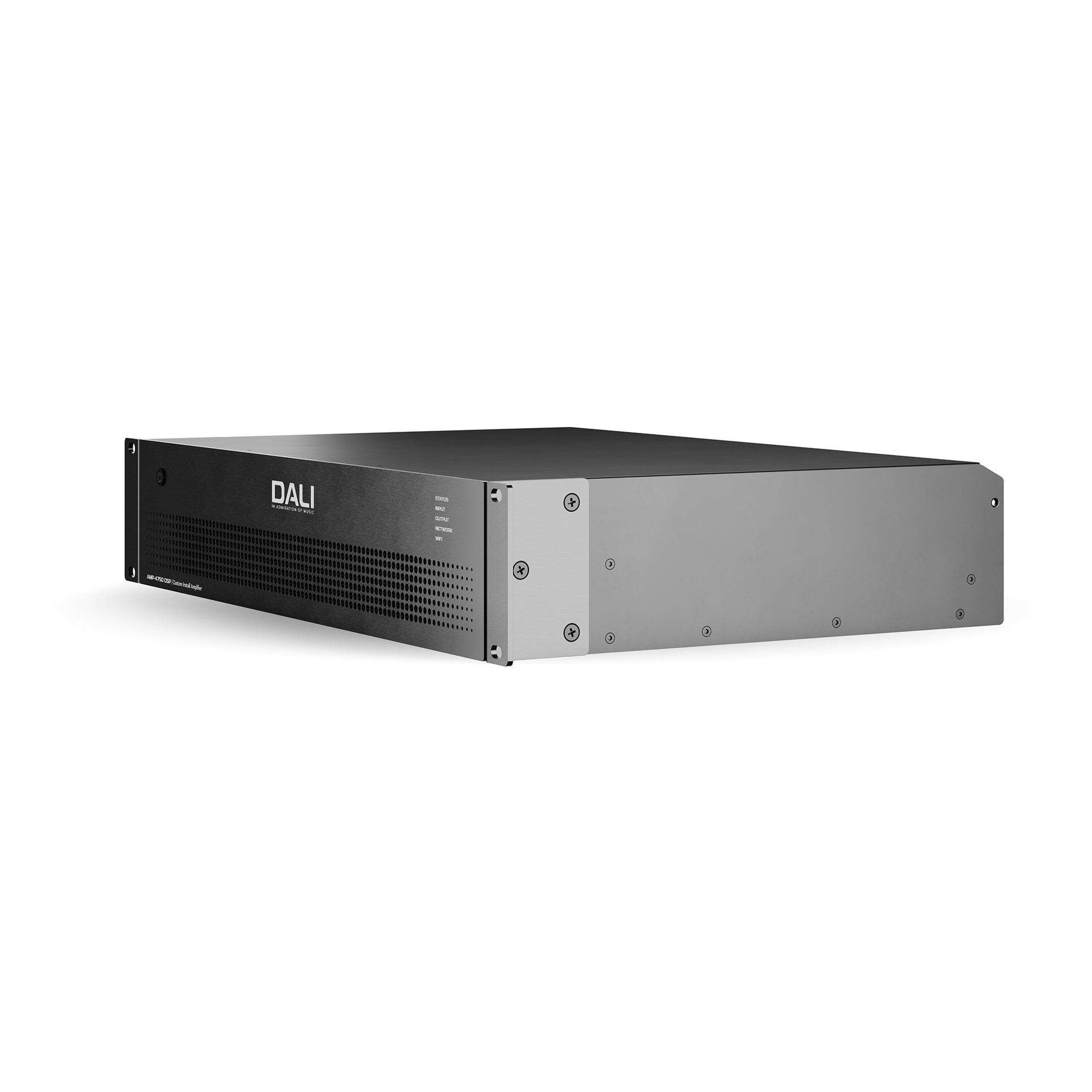

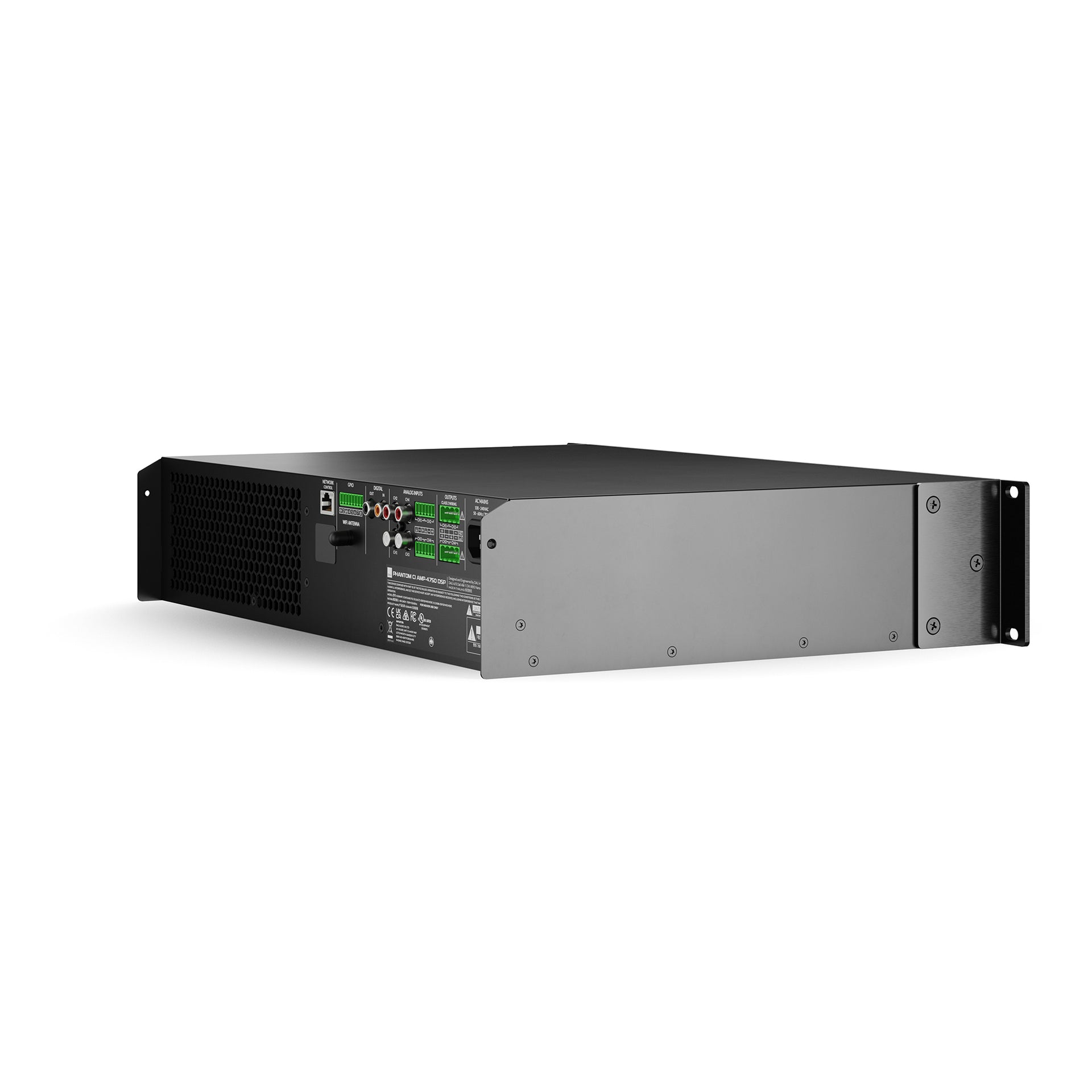

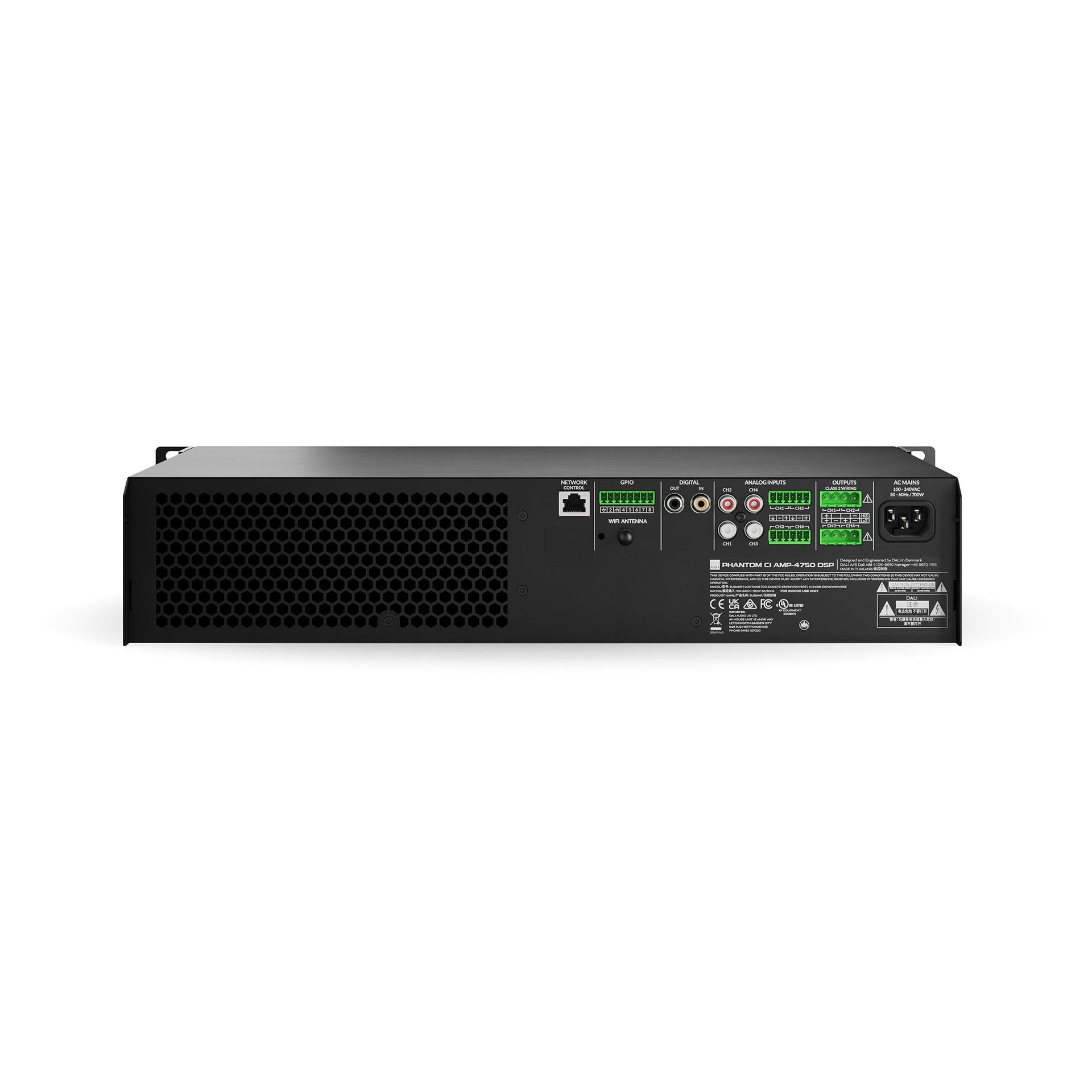

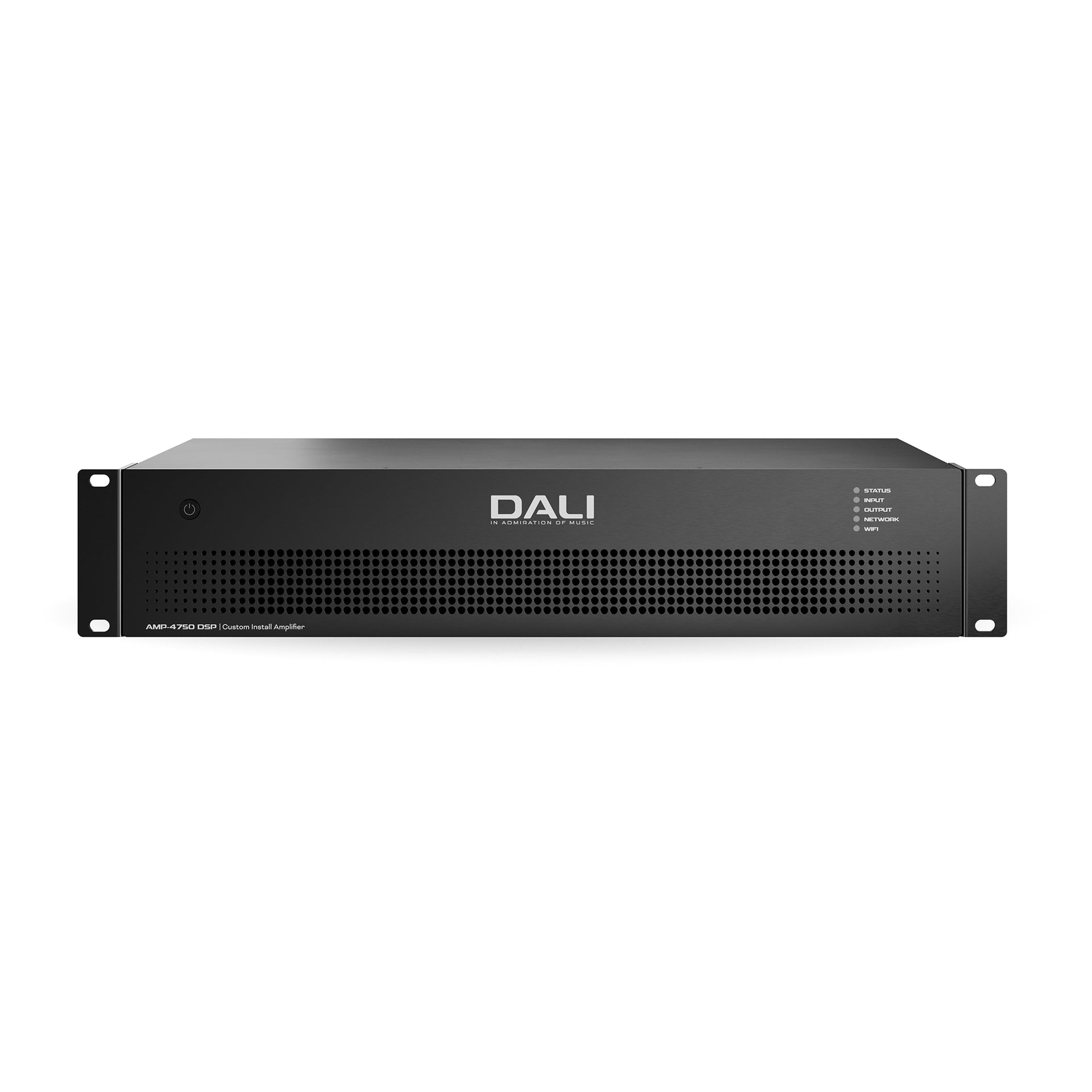

The DALI PHANTOM CI AMP-4750 DSP is a powerful Class-D, rack-mountable, custom installation amplifier. Featuring advanced, integrated digital signal processing and speaker presets, this 4x 750 watt powerhouse brings out the very best in any DALI PHANTOM home theatre or multi-room installation. And with Wi-Fi/LAN connectivity and a web-based configurator, even complex setups are made simple.

POWERFUL CUSTOM INSTALLATION
Control of up to four DALI PHANTOM speakers
The DALI PHANTOM CI AMP-4750 DSP is a powerful custom installation amplifier with advanced digital signal processing and speaker presets that get the very best from any DALI PHANTOM custom installation setup. Powered by 4 x 750 watts of ultra-low distortion, Class-D amplification, this rack-mountable powerhouse includes low-noise fan cooling, integrated protection circuits and a range of connectivity options, including Wi-Fi, LAN and GPIO. Using any Wi-Fi-enabled computer, tablet or smartphone, the web-based PHANTOM AMP CONFIGURATOR also provides intuitive configuration and control of up to four DALI PHANTOM speakers or eight subwoofers in any home cinema.

CLASS-D AMPLIFICATION
Unforgettable experiences await
With 4x 750 watts of Danish-developed Class-D amplification, the AMP-4750 DSP delivers effortless power, extremely high efficiency and ultra-low distortion. Designed for high-end CI audio and home theatre installations, this low-noise fan-cooled, rack-mountable powerhouse is the perfect match for speakers like our PHANTOM M and S-series speakers. And with so much headroom, it can power up to eight PHANTOM IW SUB S-100 in-wall subwoofers for epic movie experiences and can even be bridged into a 1,500 watt stereo amp to satisfy even the most demanding high-end enthusiast.

FULLY FEATURED DSP
DSP control at your fingertips
The intuitive web-based DALI PHANTOM AMP CONFIGURATOR helps you get the most out of even the most complex CI installation. With DSP tools like parametric equalisers, audio limiters and compressors, routing matrix, input/output settings, speaker delay and model-specific presets, the AMP CONFIGURATOR has the tools you need to get the very best sound from any installation.

WIDE RANGE OF APPLICATIONS
A versatile performer
Aimed primarily at high-performance home cinema installations based on PHANTOM M and S-series CI speakers and in-wall subwoofers, the multi-purpose AMP-4750 DSP amplifier can also power in-wall and in-ceiling speakers in a multi-room installation. And with 4 analogue, 2 digital inputs and 4 speaker outputs, this versatile amp is also a great power source for use in bars, restaurants, cafés, fitness centres and other retail environments.

With a collection of speaker-specific presets, the CI AMP-4750 DSP delivers the best possible sound.
4 x 750 watts of Class-D amplification let you drive amazing multi-speaker CI installations.
Powerful DSP tools make for intuitive configuration and control of even highly complex CI setups.
The CI AMP 4750-DSP is the perfect match for high-performance home theatres and multi-room installations.

DALI PHANTOM CI AMP-4750 DSP Custom Installation Amplifier Specifications
Frequency Range	12 Hz – 20 kHz (+/- 1 dB, 8 Ω load, 3 dB below rated power)
Connection Input(s)	4 × Analogue unbalanced, RCA 4 × Analogue balanced, Euroblock connector 1 × S/PDIF, RCA
Output Channels	4 × Lo-Z loudspeaker (4 - 16 Ohm) 2 × Hi-Z loudspeaker (70 V / 100 V) 1 × S/PDIF digital out, RCA
Maximum Speaker Cable Cross Section	2,5 mm² / AWG 14 (Euroblock standard)
Output Power @ 4 Ohm	4 × 750 W (SE)* 2 × 1500 W (BTL)**
Output Power @ 8 Ohm	4 × 400 W (SE) 2 × 1500 W (BTL)
Output Power @ 70 V	2 × 1200 W (BTL)
Output Power @ 100 V	2 × 1500 W (BTL)
Total System Power	3000 W
Power Consumption	1100 W
Output Voltage	SE: 85 Vp / 170 Vpp (unloaded) BTL: 170 Vp / 340 Vpp (unloaded) 70/100 V (Hi-Z)
Output Circuitry	UMAC™ Class D Full bandwidth PWM modulator with ultra-low distortion
Signal to Noise Ratio	>106 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (Typical)	< 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Other Features	Short circuit protection DC protection Undervoltage protection Temperature protection Overload protection Rack mountable
Power Supply	UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating Temperature	0 - 40° C
Operating Voltage/Frequency	Universal mains 100 V - 240 V, 50 - 60 Hz
Power Ratings	1 % THD @ 120 VAC and 230 VAC
Standby Consumption	< 0.5 W
Outer Dimensions (H x W x D)	88 × 440 × 332 mm (3.50 × 17.30 × 13.10 inches)
Weight	7.22 kg (15.91 lb)
Shipping Weight	9.34 kg (20.59 lb)

Quick Start Guide
User Manual
How to Update Firmware

1 x Amplifier Unit
2 x Two Channel Balanced Input Connector
2 x Two Channel Output Connector
1 x GPIO Socket Connector
1 x Mains Power Cable
1 x Adhesive Rubber Feet

2 years
