Price:
$359
*Check with our team or your local store for availability.
We guarantee that all of our stock is 100% genuine,
Australian sourced stock, with full local warranty.

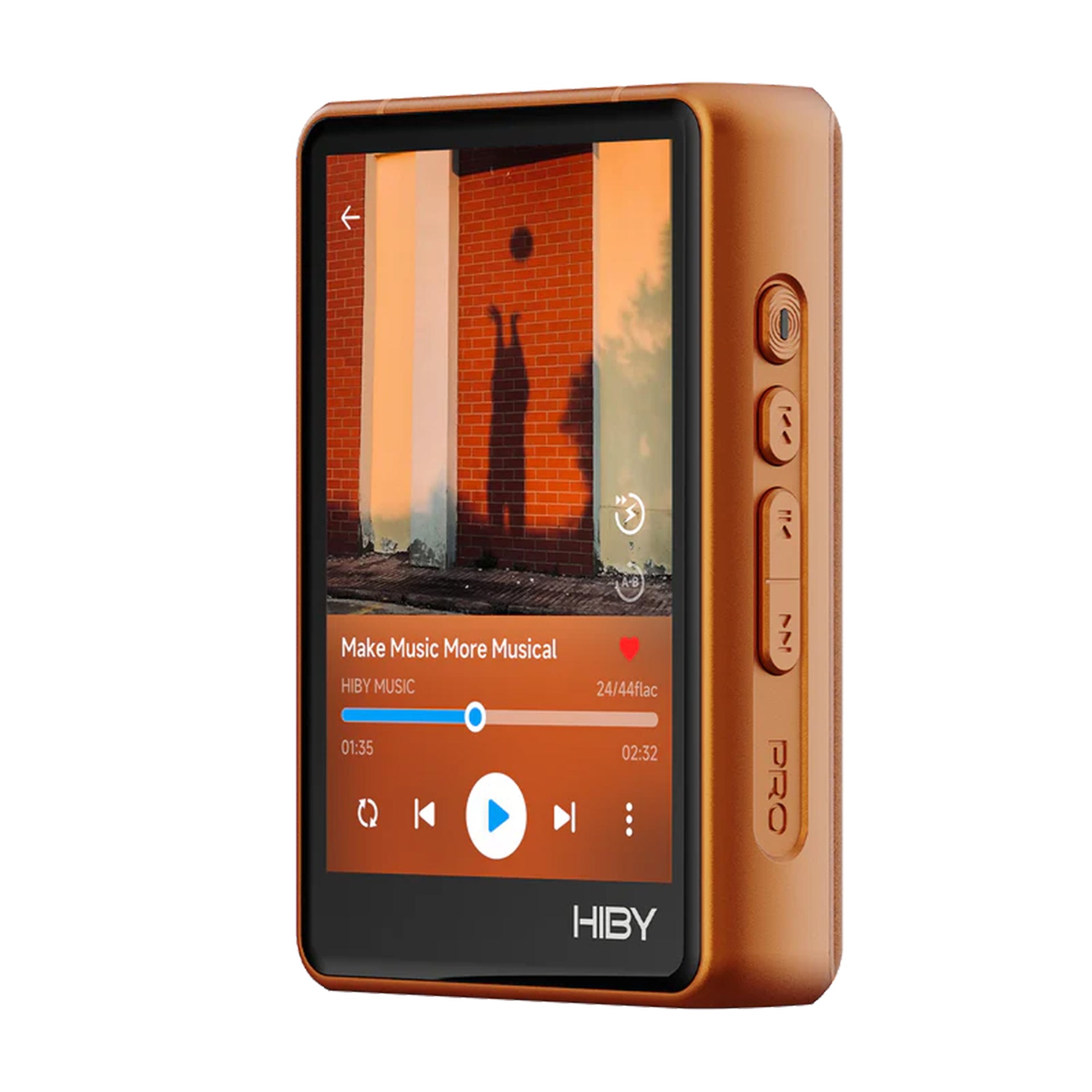

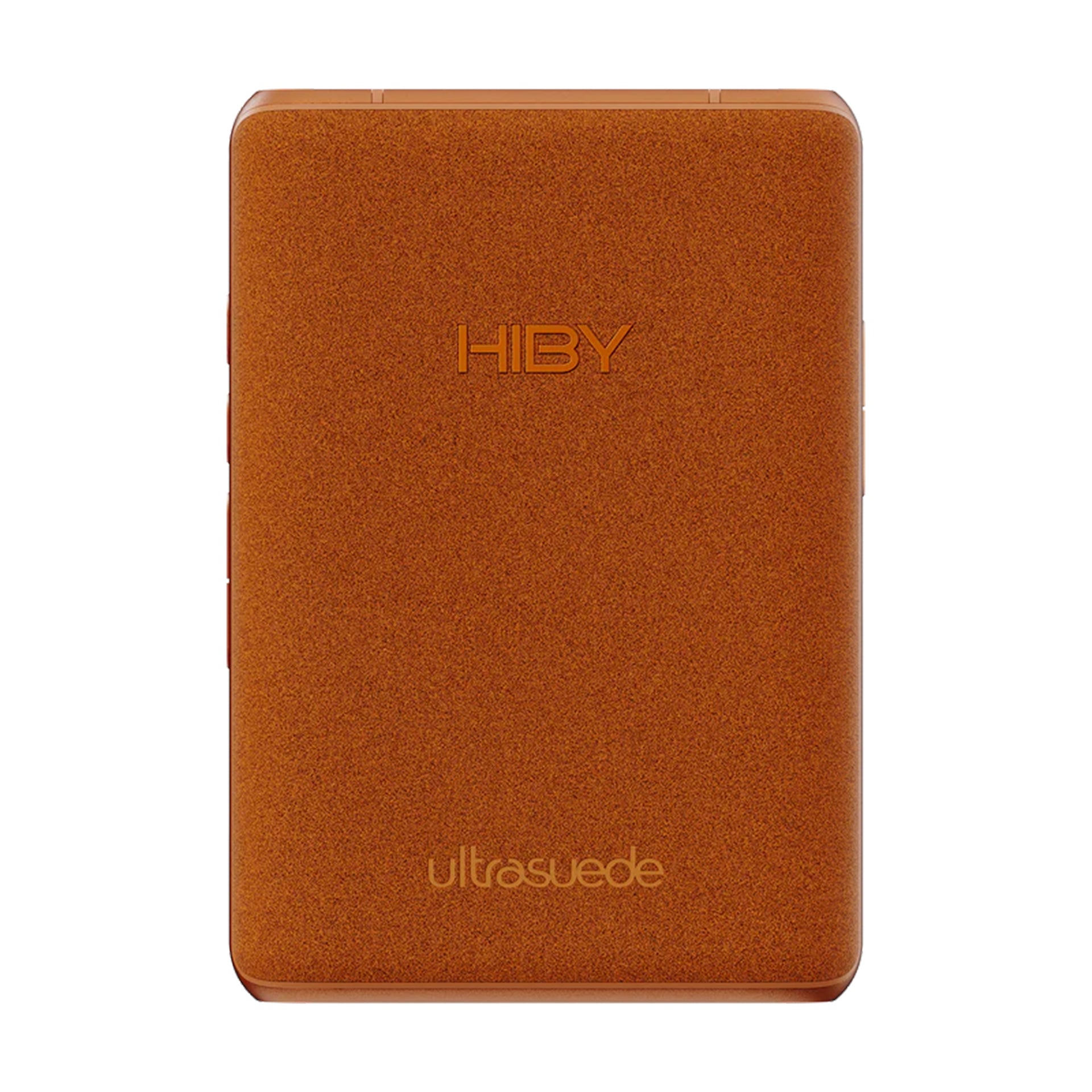

Colour: Orange
afterpay
afterpay

Description

  • Dual CS43198
  • 4x OPA1622 headphone amps separate from DAC
  • 4000mAh large battery
  • 3.5mmPO+ 4.4mm BAL.PO
  • Up to 480mW output power

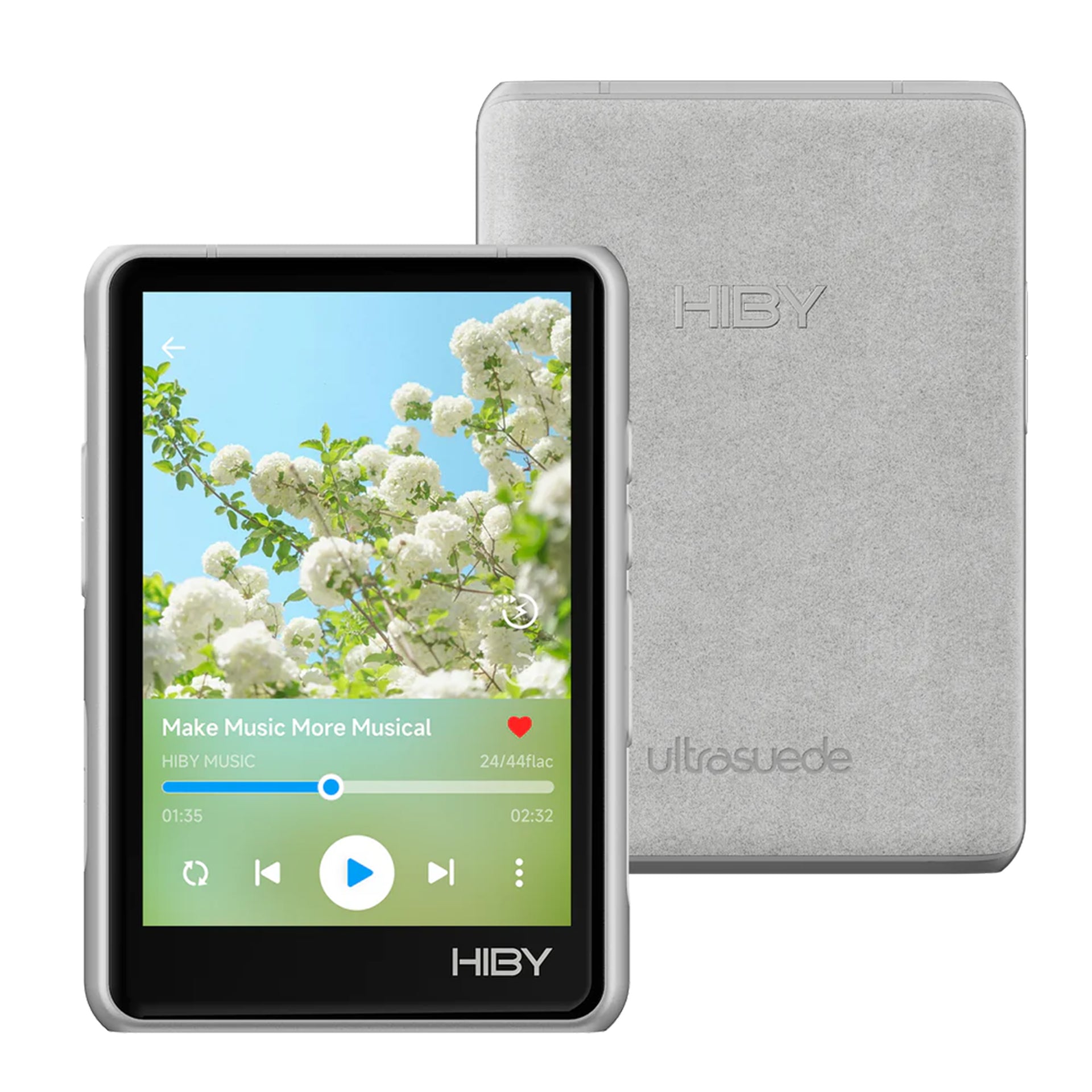

  • 3.3” High Resolution Touch Screen
HiBy R3 Pro II Digital Specifications
Audio Specifications
3.5mmPO 4.4mmBAL
Max Output Voltage 2 VRms 3.91 VRms
Max Output Power 121 mW 480 mW
Nominal Output Voltage 1.9 VRms 3.91 VRms
Nominal Output Power 121 mW 480 mW
Minimum Distortion 0.0005% 0.0005%
Dynamic Range 122 dB 128 dB
Noise Floor 1.6 υν 1.80 V
SNR 128 dB 126 dB
Channel Separation 70 dB 109 dB
Frequency Response 20 Hz – 90 kHz 20 Hz – 90 kHz
Hardware Specifications

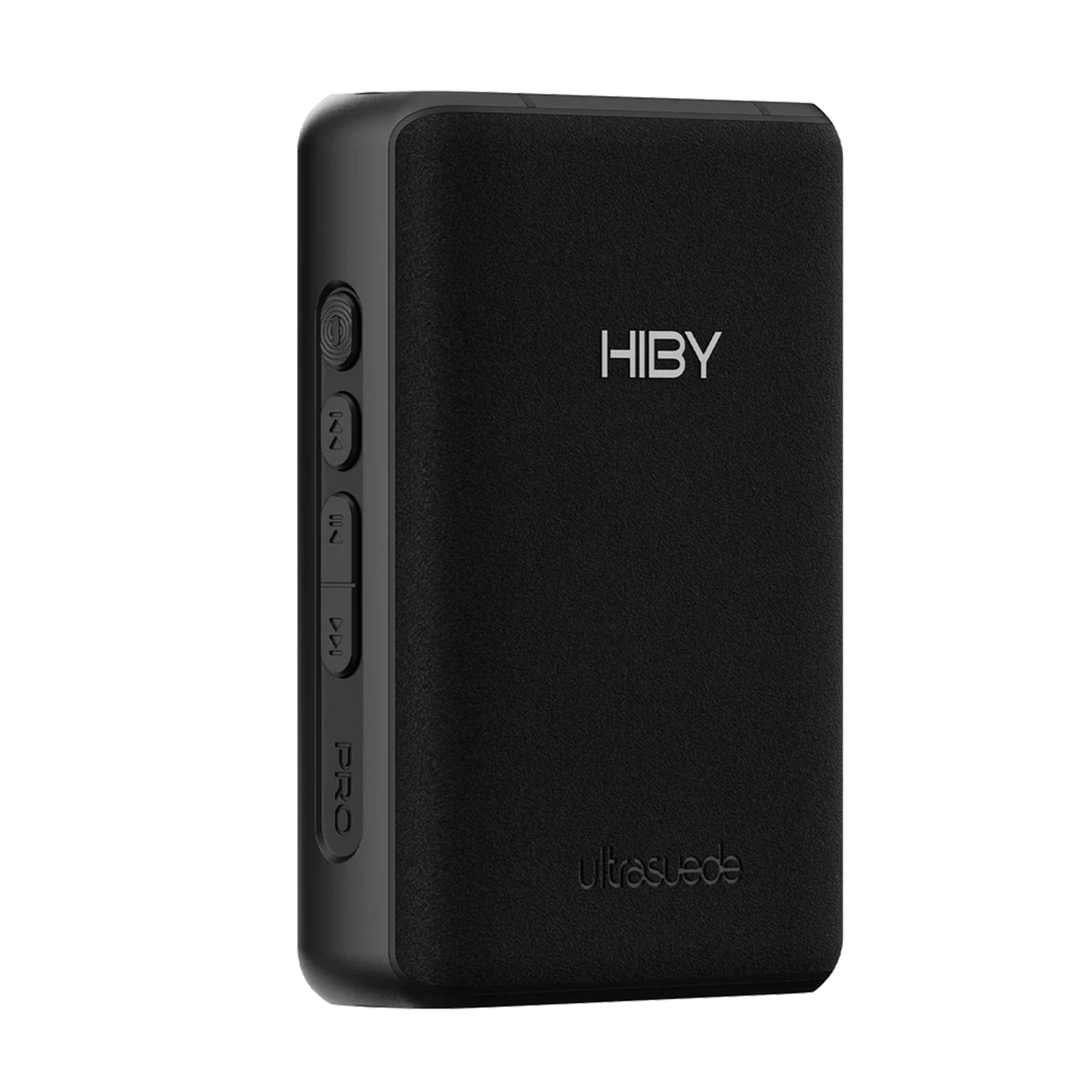

Model HiBy R3Pro II
Operating System HiByOS (Linux-based)
Logic SoC X1600E
DAC Dual CS43198
Audio Resolution DSD256, PCM 384kHz/32bit, MQA 8X
Analogue Audio Ports 3.5mm PO, 4.4mm BAL
Digital Audio Ports USB-C (S/PDIF, USB Audio In, USB Audio Out)
Audio Formats Supported mp3, wav, ape, flac, dsf, dff, iso, cue, wma, ogg, aac, opus, aiff
WiFi Support 2.4G
Bluetooth Bluetooth 5.1
Hi-Res Bluetooth Codecs Supported UAT, LDAC, aptX (send only), AAC, SBC
Wireless Audio Features AirPlay, DLNA, HiByLink
Size 3.3"
Resolution 720×480
USB Port USB 2.0 supported (with OTG support)
Micro SD Supports up to 2TB
Chassis Materials Aluminum alloy frame

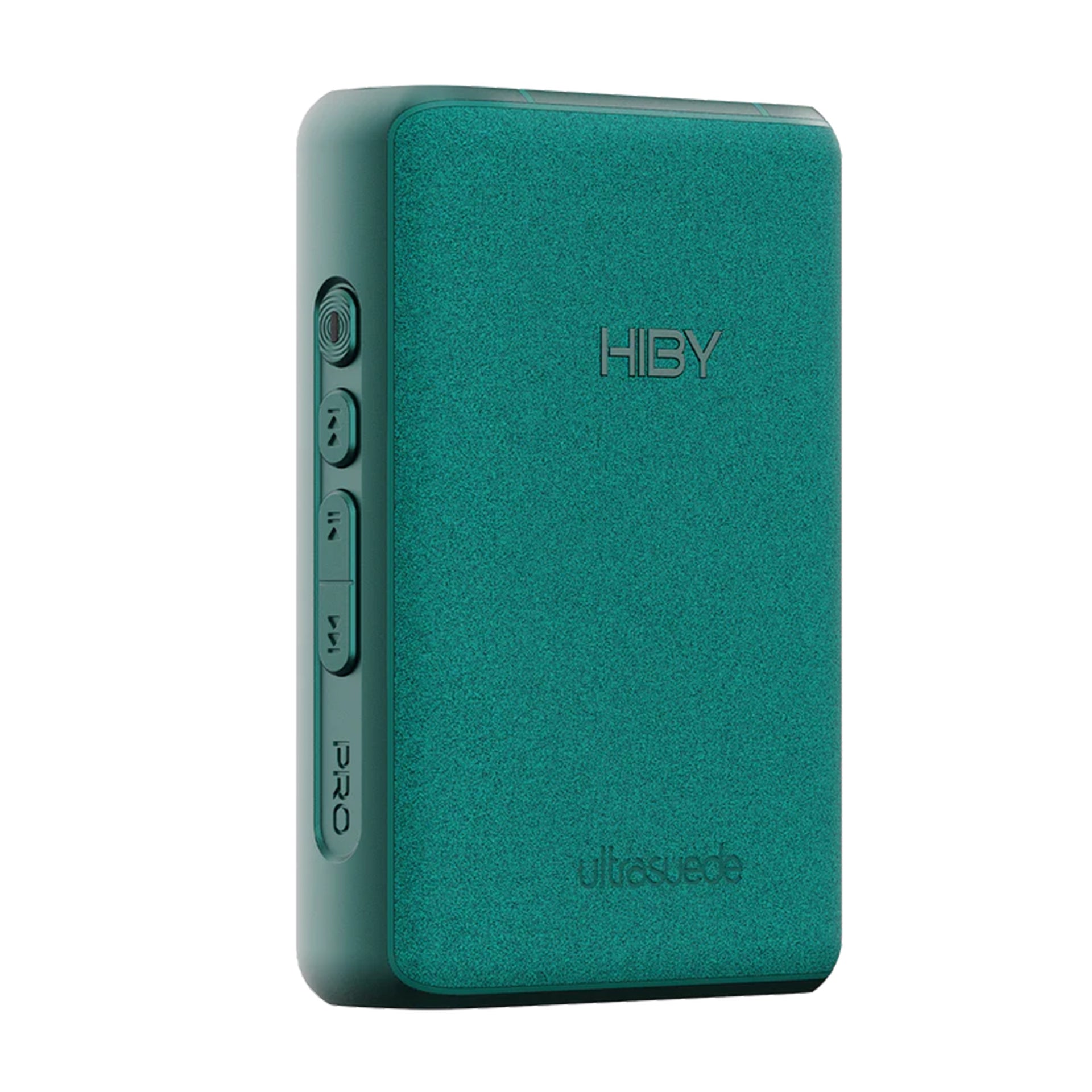

Ultra-clear backboard (standard in Green and Orange)
Dimensions 86.9 × 60.6 × 21.6 mm
Weight 160 g
Charging Power Supply 9V–1.67A; 5V–3A; 5V–0.5A
Battery Capacity 4000mAh / 3.7V
Play Time About 21h; Standby 900h (as tested at HiBy Labs)
Charging Time <2h (0%–100%)
Firmware Updates OTA updates supported
Font Size Adjustable
  • 1 x HiBy R3Pro II
  • 1 x Protective Case
  • 1 x Strap
  • 1 x USB Data / Power Cable
  • 1 x Warranty Card
  • 1 x QC Card
