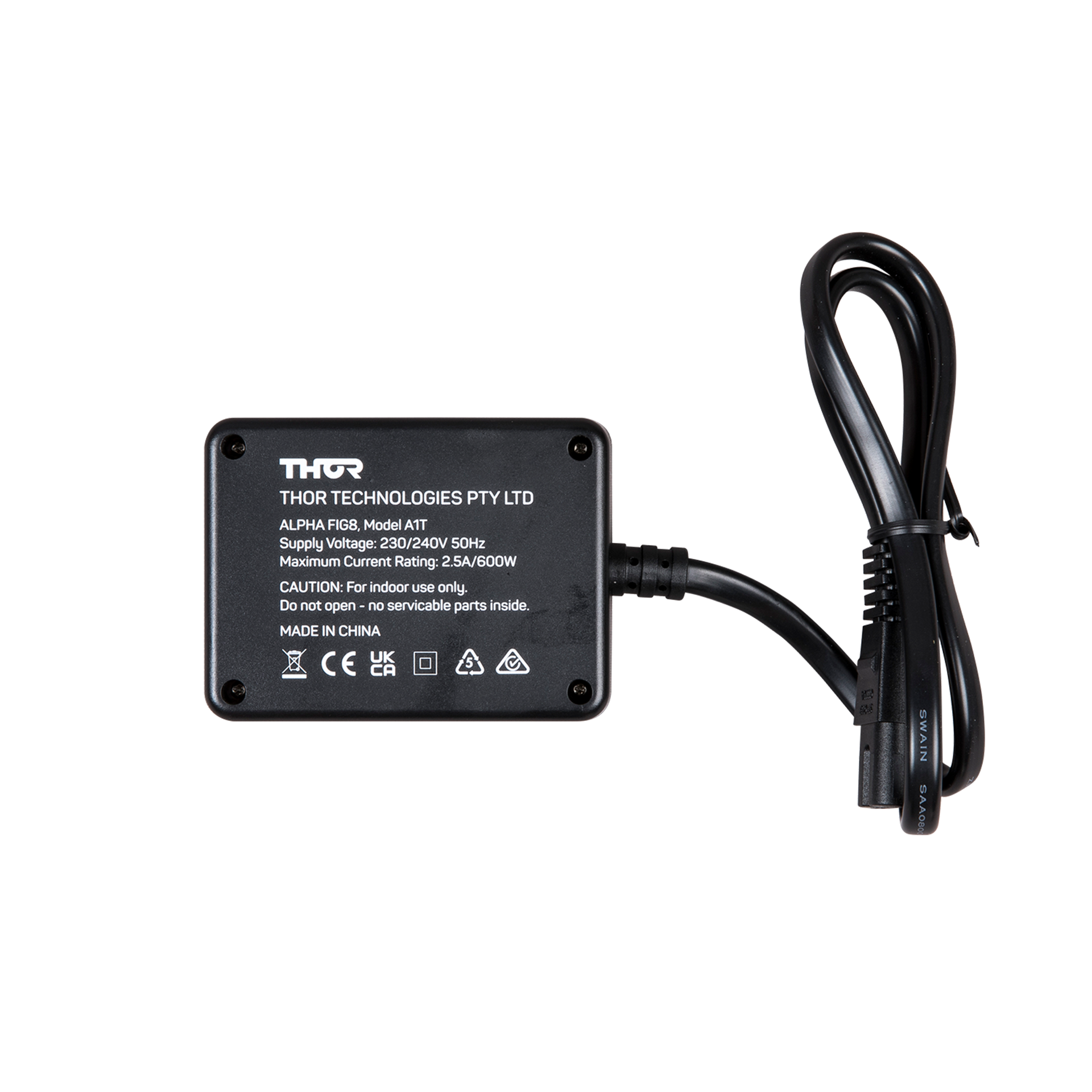

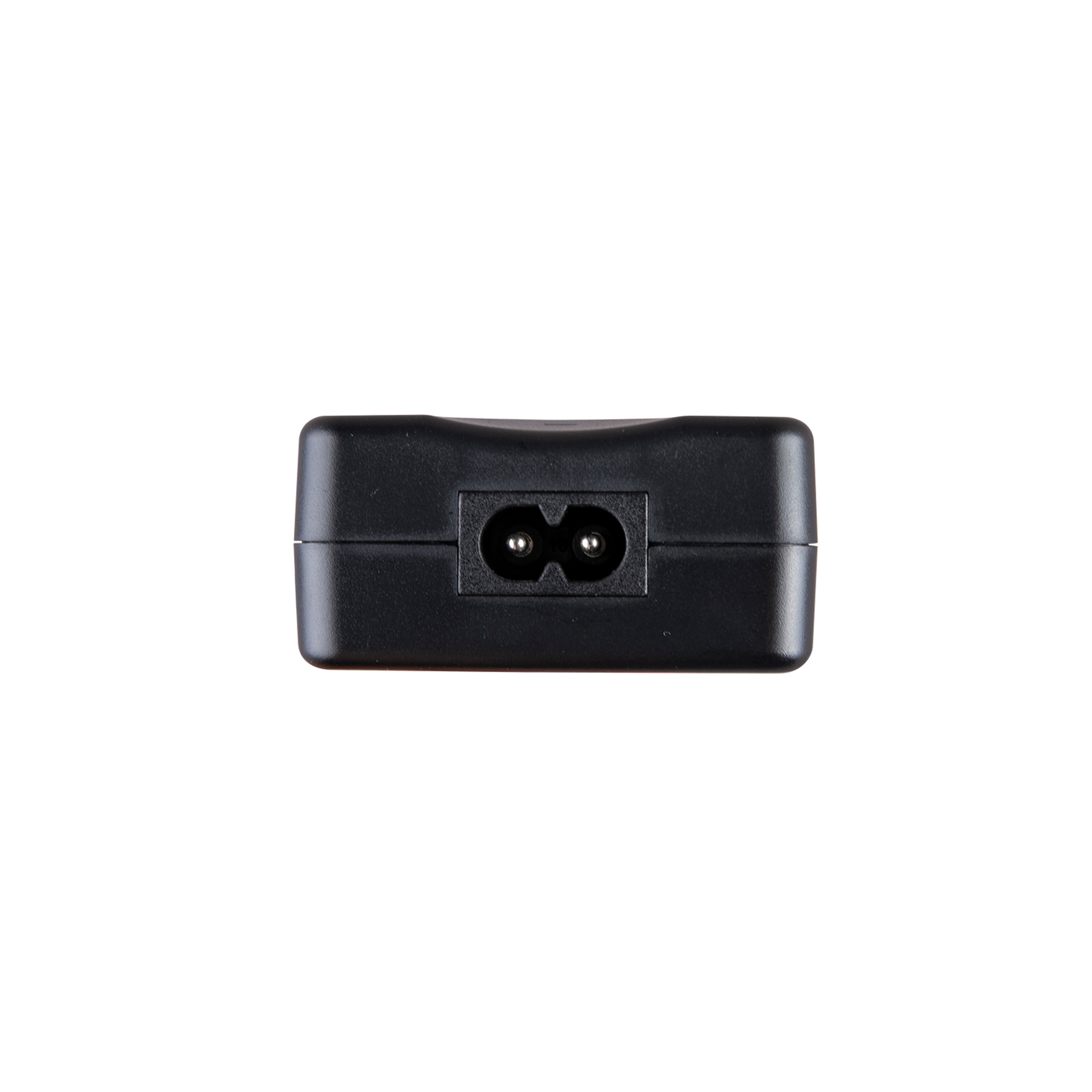

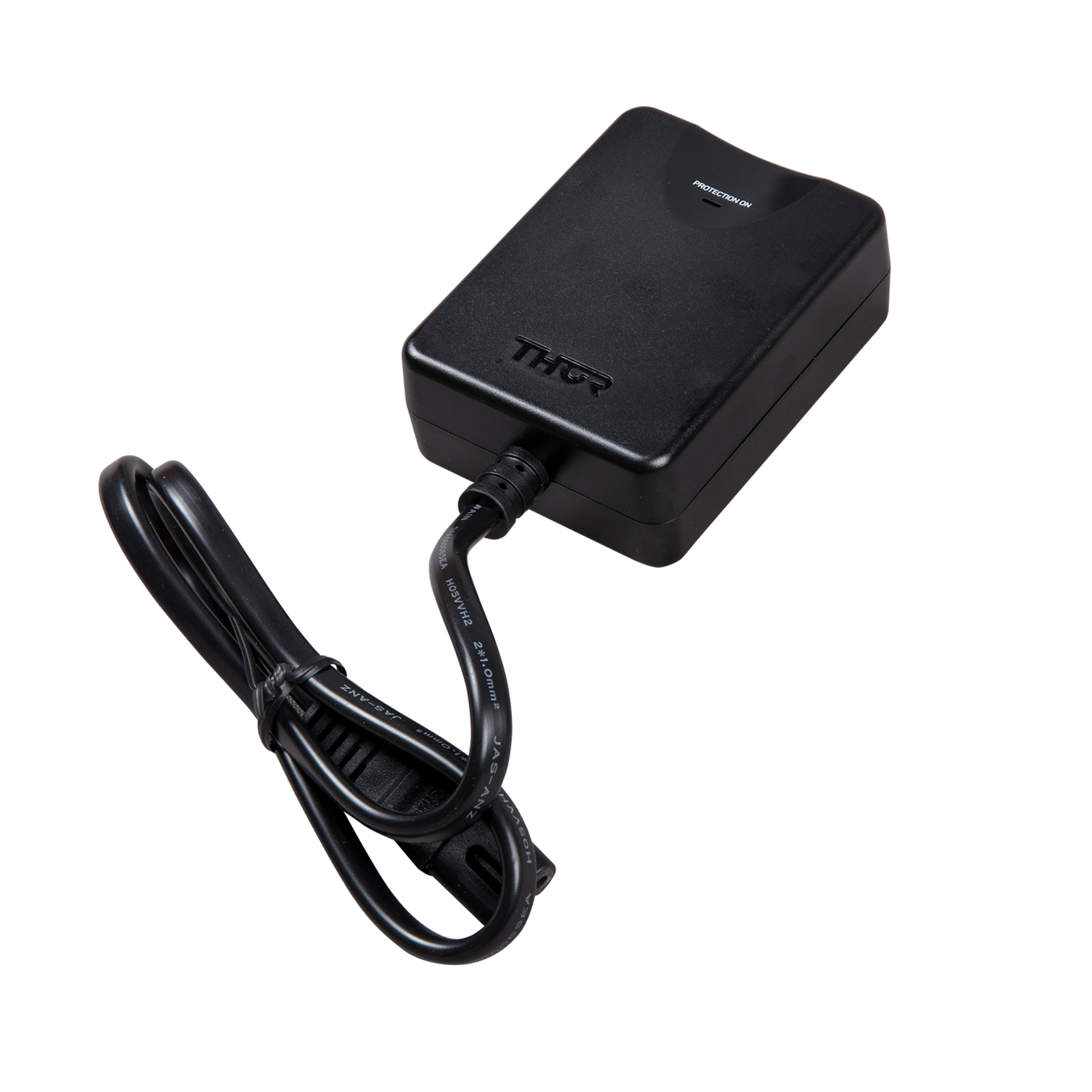

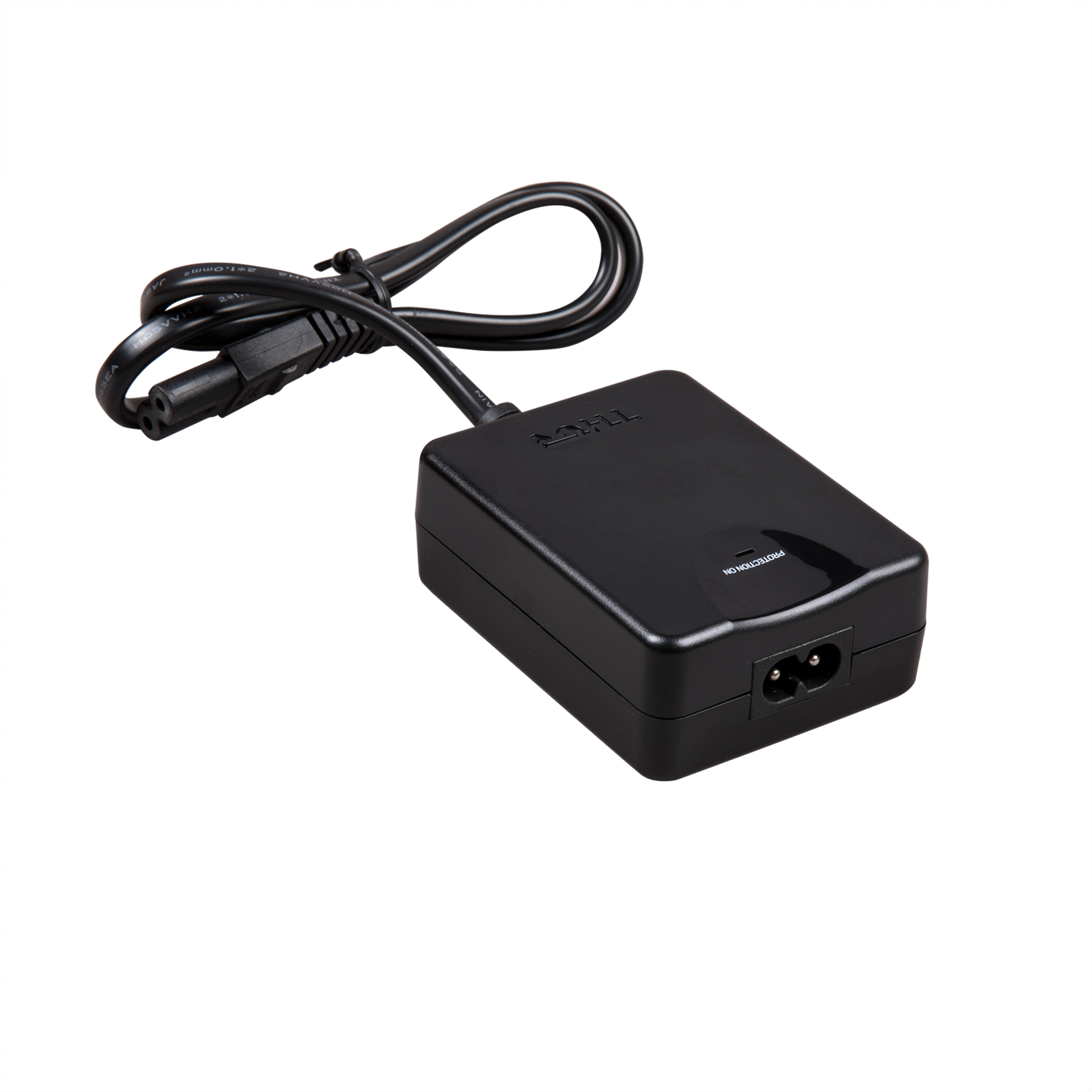

THOR A1T Alpha FIG8 Power Protection and Filtration

THOR A1T Alpha FIG8 Power Protection and Filtration

Name: THOR A1T Alpha FIG8 Power Protection and Filtration
Brand: THOR
SKU: THOR.A1T
Price: 99.0 AUD
Availability: InStock

THORSKU: THOR.A1T

Price:

$99

*Check with our team or your local store for availability.

We guarantee that all of our stock is 100% genuine,
Australian sourced stock, with full local warranty.

ALPHA FIG8 is the affordable way to have power protection for your most valuable electrical equipment. The new slimline design now means you can have surge protection and filtration anywhere.

ALPHA FIG8 is the latest addition to the Thor Technologies product range and includes newly developed Mains Super Filter (MSF) technology. The MSF is aimed at ensuring only the cleanest power is delivered to your investment. This benefit means dirty power is not robbing your connected equipment of its performance. The effects of unwanted dirty power or interference are reduced or eliminated.

Now including Flameproof MOV
Flameproof MOV ensures the main protection components will not catch fire while protecting from dangerous surges. The choice of flameproof components and the added flame-retardant housing safeguards ensure your home and family will always be safe.

TV Mountable
The ALPHA FIG8’s slimline design enables it to be installed on a TV mount bracket, keeping it neatly out of sight.

Please note:

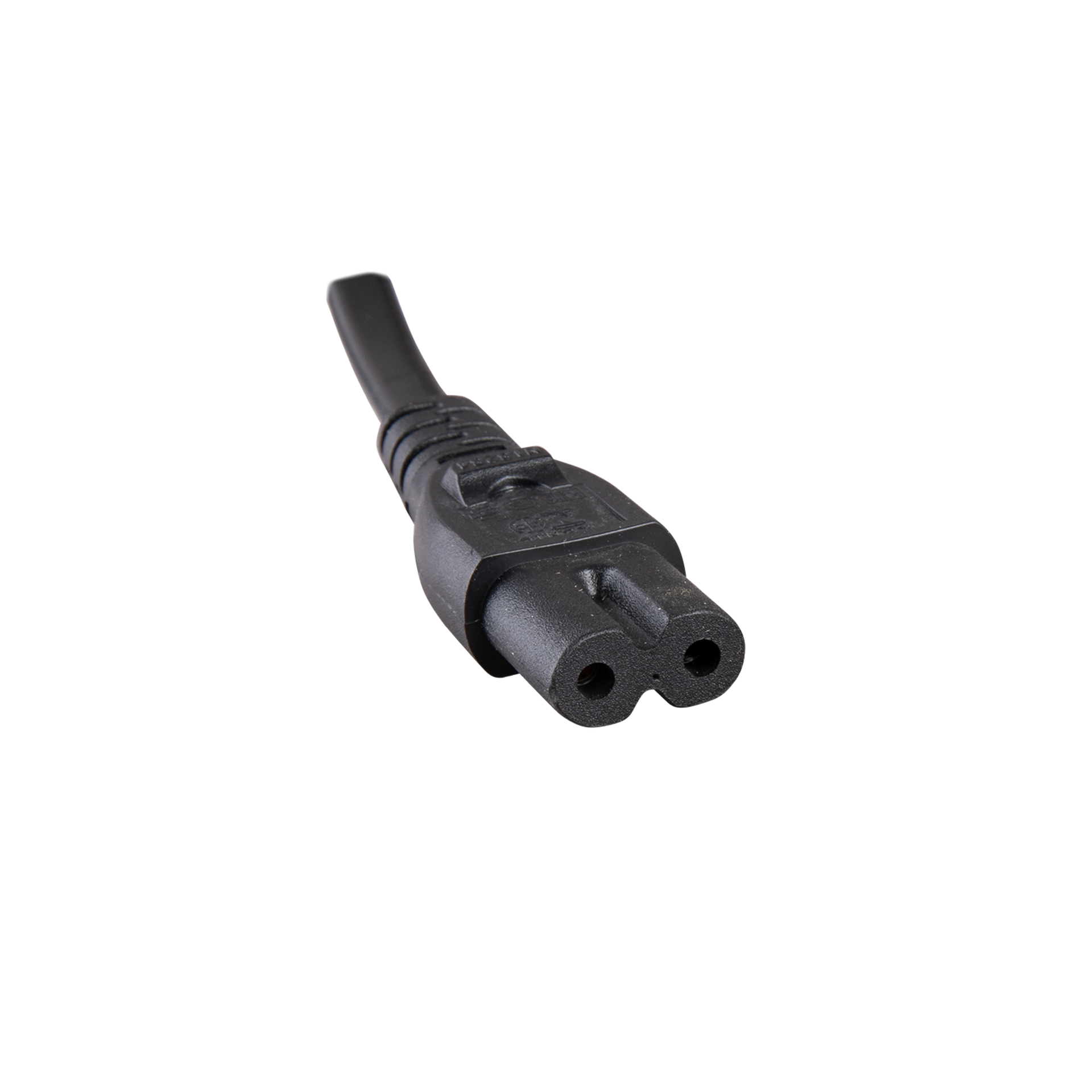

The ALPHA FIG8 is used in conjunction with your existing Figure 8 cable or the manufacturer’s supplied Figure 8 cable.

Slimline 8-way surge protector with figure-8 connection for easy integration behind equipment.
Features THOR’s Mains Super Filter (MSF) technology for cleaner, interference-free power.
Provides 2,115 joules of surge protection with ultra-fast response time under one nanosecond.

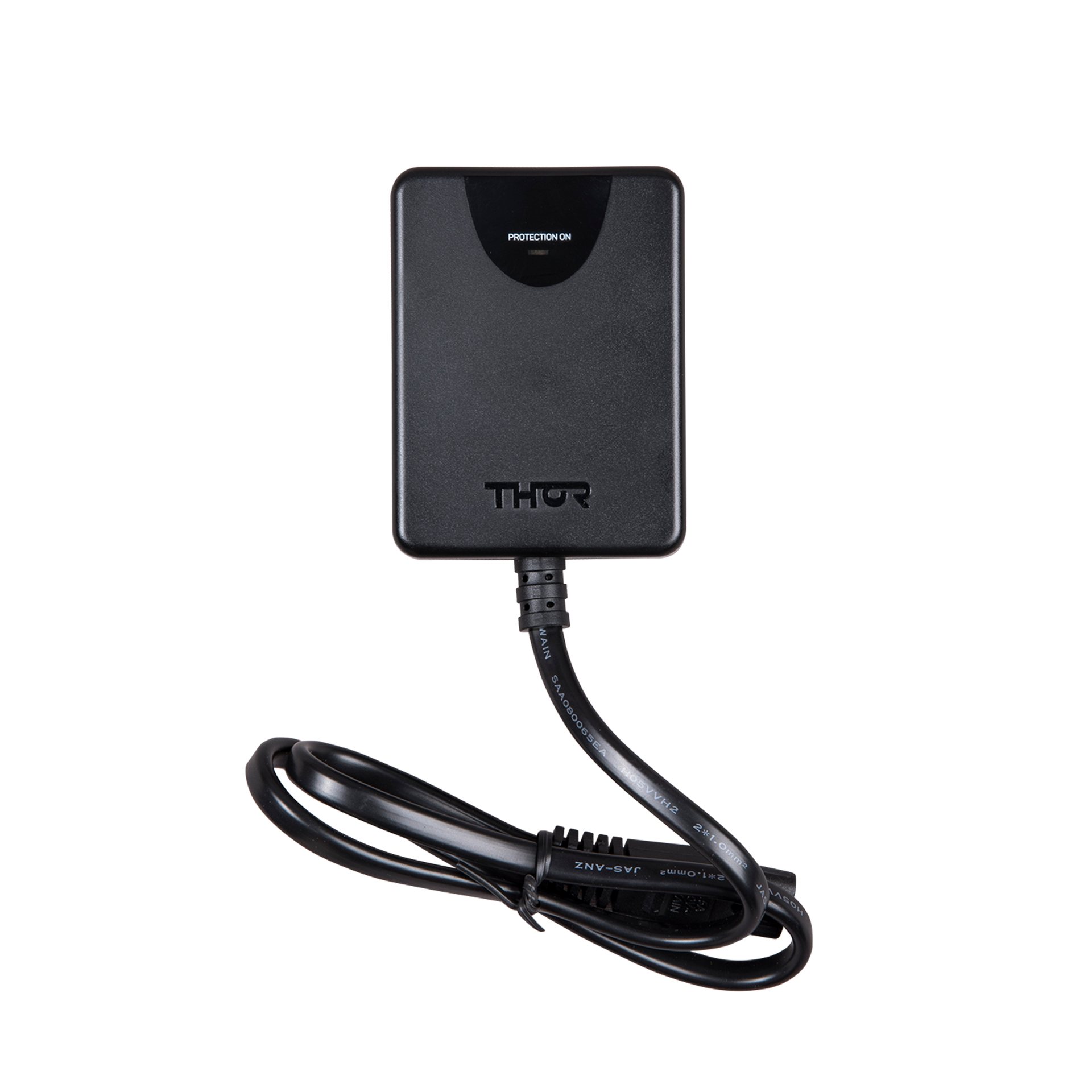

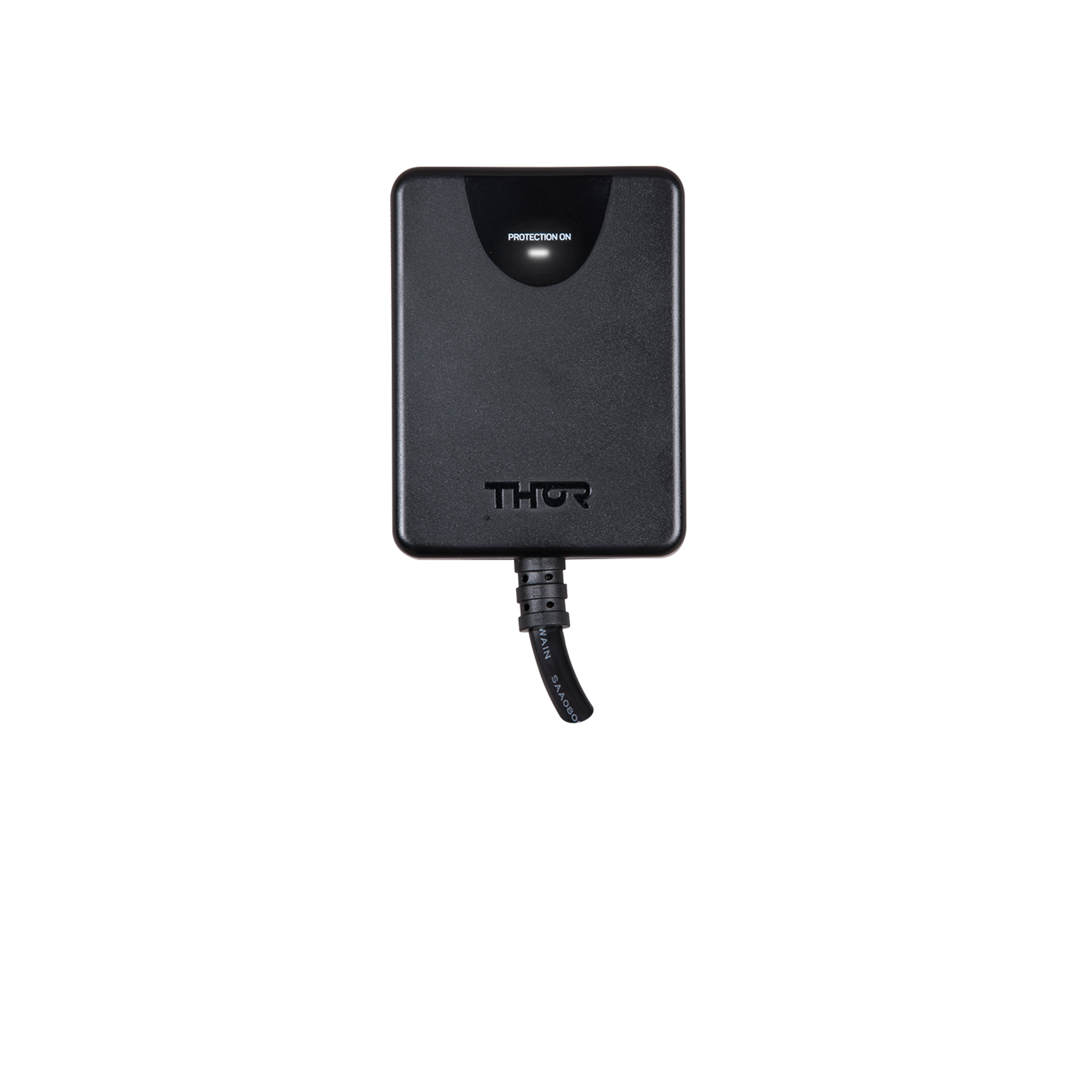

Equipped with a status LED and audible alarm to indicate active protection and circuit faults.
Built with flameproof MOVs and a durable housing for maximum safety and reliability.

THOR A1T Alpha Figure 8-way Surge Protector Specifications
Supply Voltage	230/240V 50Hz
Maximum Current Rating	2.5A / 600W (VA)
Clamping / Let Through Voltage	510VAC
Reaction Time	Less than 1 nanosecond
Maximum Energy Dissipation	2115 Joules (equivalent to 705 Joules using UL1449 standard)
Protection Modes	Active/Neutral, Active/Earth, Neutral/Earth (1 outlet protects on all 3 conductors)
Protected AC Outlets	1
Earth Potential Rise Protection	Yes
Earth Leakage Range	Less than 1 mA
Operating Conditions	Indoor / AC mains
Operating Temperature	-10°C to +60°C
